Product Overview

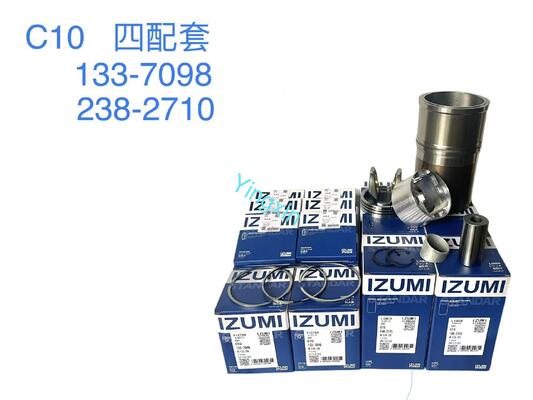

This is a high-quality IZUMI Standard 4-piece cylinder liner kit, specially designed for Cater--pillar 3406 diesel engines. It includes all necessary components for a complete engine overhaul, providing a cost-effective and reliable solution to restore engine performance.
Product Specifications
| Part Name |
Part No. |
Outer Diameter |
Inner Diameter |
Height / Length |
Standard Size |
| Cylinder Liner |
238-2710 |
130.00 mm |
125.00 mm |
230.00 mm |
OEM Standard |

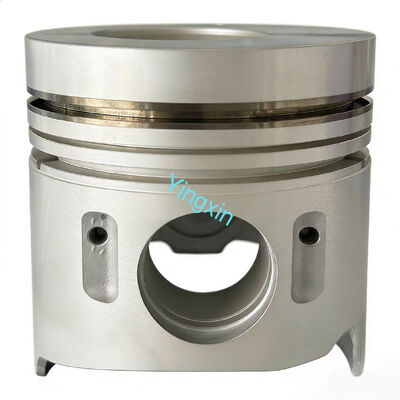

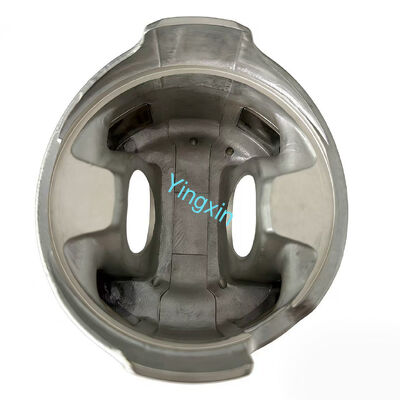

| Piston |
133-7098 |
125.00 mm |
48.00 mm (pin bore) |
120.00 mm |
OEM Standard |
| Piston Pin |
/ |
48.00 mm |
26.00 mm |
100.00 mm |
OEM Standard |
| Piston Ring Set |
/ |
125.00 mm |
121.00 mm |
3.5/3.0/4.0 mm (ring thickness) |
Full Set Size |
Key Features
- Direct Fit Compatibility: Matches all OEM specifications for the CAT 3406 engine, ensuring a perfect fit and no modification needed.
- Premium Durability: Made of high-strength, wear-resistant materials, designed to withstand the harsh conditions of mining, construction, and heavy-duty operations.
- Complete Kit: Includes piston (9Y7212), cylinder liner (9Y4004), piston rings, piston pin, and circlips, offering everything you need in one package.
- Reliable Performance: Undergoes strict quality control and testing to ensure stable operation, reduced oil consumption, and improved engine power.
- Cost Efficiency: Offers the reliability you need at a significantly lower cost than OEM parts, helping you reduce maintenance expenses.
Applications
Compatible with heavy-duty equipment powered by the CAT 3406 engine, including:
- Excavators
- Mining Haul Trucks
- Industrial Generators
- Other Heavy Construction Machinery
Related Parts & Compatibility
| Part Number |
Component Name |
Compatible Engine |
Typical Equipment Applications |
| 133-7098 |
Piston |
CAT C10 |
CAT 330C, 345B, 365B Excavators; Heavy Haul Trucks |
| 238-2710 |
Cylinder Liner |
CAT C10 |
CAT 330C, 345B, 365B Excavators; Construction Machinery |
| 168-7275 |
Cylinder Liner (Alt. Spec) |
CAT C10 |
CAT 345B, 365B Excavators |
| 133-7097 |
Piston (Alt. Spec) |
CAT C10 |
CAT 330C, 345B Excavators |
| 197-9297 |
Piston Ring Set |
CAT C10 |
All C10-powered heavy equipment |
| 164-4620 |
Piston Pin |
CAT C10 |
CAT 330C/345B/365B excavators and trucks |
| 198-1987 |
Full Overhaul Gasket Kit |
CAT C10 |
Complete engine rebuilds for all C10 applications |
| 190-3620 |
Connecting Rod Bearing Set |
CAT C10 |
Heavy-duty C10 engines in mining and construction |
Package & Delivery
- All parts are securely packaged in original IZUMI standard boxes to prevent damage during transit.
- Fast shipping options are available to meet your urgent maintenance and repair needs.
