Home /Products/Engine Piston Kit/8-97176-686-0 Car Engine Piston Kit 93mm STD Isuzu 4JB1 IZUMI Standard

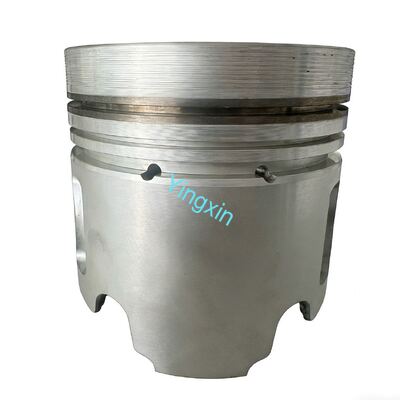

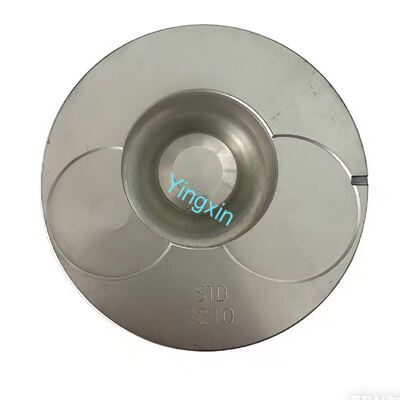

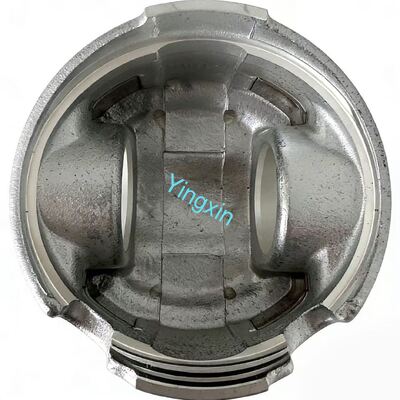

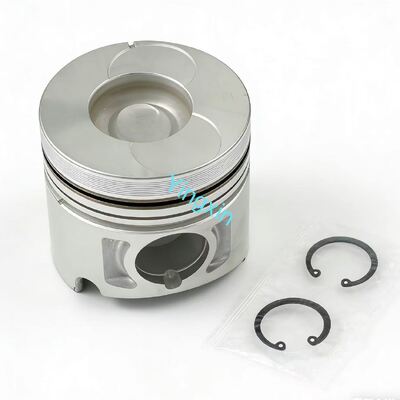

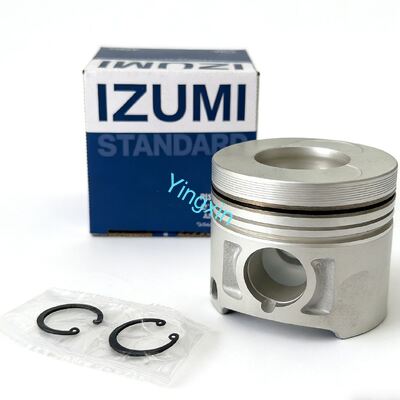

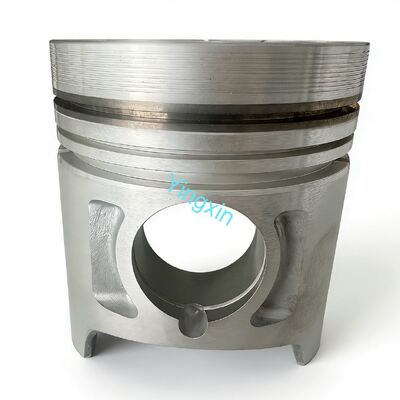

8-97176-686-0 Car Engine Piston Kit 93mm STD Isuzu 4JB1 IZUMI Standard

1
MOQ
$1-30
Price
8-97176-686-0 Car Engine Piston Kit 93mm STD Isuzu 4JB1 IZUMI Standard
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: 8-97176-686-0
Cross Reference: 8-94436-824-0 / 5-12111-246-0
Product Name: Engine Piston
Brand: IZUMI
Fits Engine: Isuzu 4JB1 Diesel Engine
Bore Diameter: Φ93.00 Mm (STD)
Piston Type: Direct Injection Bowl-in-Piston Design
Material: High-strength Aluminum Alloy With Anti-friction Skirt Coating
Pin Bore Diameter: 28 Mm
Ring Grooves: 3 Grooves
Compatible Applications: Isuzu Pickup, Elf Truck, Excavators, Light Commercial Vehicles
HS Code: 8409999990
Function: Engine Overhaul, Cylinder Repair, OEM Replacement
Package Description: Each Piston With Pin And Circlips, Wrapped With Anti-rust Paper, Packed In Individual Neutral Box.
Highlight:

8-97176-686-0 Piston

,

Car Engine Piston 93mm STD

,

Isuzu 4JB1 Engine Piston Kit
Basic Infomation
Place of Origin: CHINA
Certification: CE ISO9001
Payment & Shipping Terms
Packaging Details: Neutral Export Carton
Delivery Time: 3-7 Works day
Payment Terms: T/T
Supply Ability: 50000/Years
Product Description
Product Description;
Piston Kit for Isuzu 4jb1 Series Light Trucks, Pickups, Excavators, Loaders, Forklifts, Generators

Parameter Name
Detailed Specifications
Engine Model
 4JB1, 4JB1T 2.8L, JX493Q
OEM No.
8-94152-711-0, 8-97176-606-0, 8-97176-607-0
Bore
93mm
Total Height
91.8-92mm
Compression Height
51.8mm
Pin Size
31*76mm / 34*78mm
Material
High-silicon Aluminum Alloy / Forged Aluminum
Combustion Chamber
φ44mm
Application
1. ELF NKR, NHR, 100P, NPR Truck; 2.  EX60UR/URG,  SK60,  HD307 Excavator; 3. 853 Skid Steer
Size
STD, +0.25, +0.50, +0.75, +1.00
Package
1 Set/Box (Piston + Pin + Circlip + Piston Rings)
Warranty
12-18 Months
Certification
ISO9001, TS16949
Part Number Fit Engine / Model Product Name Application
4JB1 Isu-zu 4JB1 Engine Gear Pump Hydraulic / Oil Pump
897044-5470 Isu-zu 4JB1 Hydraulic Gear Pump Forklift / Excavator
897128-1470 Isu-zu 4JB1 Gear Oil Pump Engine Lubrication
9510390259 4JB1 / ZF / Forklift Hydraulic Gear Pump Transmission System
4029017 4JB1 Excavator Loader Hydraulic Gear Pump Main Hydraulic Pump
4029018 4JB1 Construction Machine Auxiliary Gear Pump Pilot Auxiliary Pump
4228546 4JB1 Engineering Machinery Pilot Gear Pump Hydraulic Control
4045054 4JB1 Lo-ader Steering Gear Pump Steering Hydraulic System
292-3586 4JB1 C-A-T Excavator Charge Gear Pump Hydraulic Charge Pump
704-24-28200 4JB1 Ko-matsu Equipment Single Gear Pump Working Hydraulic Pump

Packing and shipping:
Piston Kit for Isuzu 4jb1 Series Light Trucks, Pickups, Excavators, Loaders, Forklifts, GeneratorsPiston Kit for Isuzu 4jb1 Series Light Trucks, Pickups, Excavators, Loaders, Forklifts, GeneratorsFAQ
lSSUES YOU MAY BE CONCERNED ABOUT
HERE IS THE ANSWER!

Q1:How long is the warranted time?
A:For natural broken, 3 months. Guarantee genuine parts.

Q2: What's payment you can accept?
A:T/T, WECHAT,PAYPAL.

Q3: What's package? Can you give me the package according my requirement?
A:Yes, Original packing or Neutral packing with wooden box or carton.

Q4: How about the lead time?
A: (1) ln stock: 1-7 days.Always in 72 hours.
(2) Out of stock: lt's according to your quantity, and we have cooperated with factory.
We will let you know when we quote.

Q5: What's the shipping way you can offer?
A: (1) Big order: By sea or by air.(It can reduce the costs).
(2) Small order: DHL,TNT,UPS,FEDEX,EMS,ARAMEX.

Q6: What's the terms of the transaction?
A:EXW,FCA,FAS,FOB, C&F,CIF,CPT,CIP,DAF,DES,DDP.

Q7: Do you accept small order?
A:Yes, small order can accept.

Q8: What's brand you can offer in your company?
A: (1)OEM,100% GENUINE PARTS, COPY(Made in China).
(2)GENUINE PARTS.
Thank you for attention!
