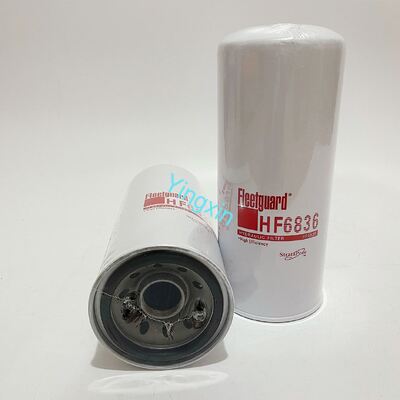

HF6836 high efficiency spin-on hydraulic filter purifies hydraulic fluid for farm tractors, loaders and industrial transmission assemblies. Stratapore multi-layer microfiber media captures metal debris, sludge and tiny abrasive particles to protect hydraulic pumps, valves and gearboxes. Built-in pressure relief valve ensures unobstructed oil flow when filter media clogs. Anti-rust steel housing and heat-resistant nitrile seal withstand high working pressure and temperature. Standard mounting thread fits most agricultural and construction machinery bases, extending full hydraulic system service cycle.
| Attribute Item | Complete Specification |
|---|---|
| Core Part Number | HF6836 |
| Brand Name | Fleetguard |
| Filter Category | Spin-On Stratapore High Efficiency Hydraulic Filter / Transmission Fluid Filter |
| Mounting Thread Standard | 1 3/8-12 UN |
| Can Outer Diameter | 114 mm / 4.49 Inch |
| Total Overall Height | 262 mm / 10.31 Inch |
| Seal Ring Outer Diameter | 82 mm / 3.23 Inch |
| Relief Valve Opening Pressure | 2.6 Bar |
| Filtration Rating | β100 Efficiency ≥99.8% |
| Filter Media Material | Stratapore Multi-layer Micro Glass Fiber |
| Housing Material | Anti-corrosion Coated Heavy Steel |
| Seal Material | High Temperature Resistant Nitrile Rubber |
| Product Surface Color | White Can Body with Red Print Logo & Markings |
| Single Net Weight | 1.18 KG |
| Single Pack Outer Dimension | 268mm × 117mm × 117mm |
| 10-Digit HS Customs Code | 8421290090 |
| Certifications | ISO9001, CE Production Standard |
| Standard Service Life | 320 Working Hours |
| Extended Service Life (Clean Environment) | 400 Working Hours |
| Storage Condition | Dry, Cool, Avoid Direct Sunlight & Humidity |
| Packaging Form | Individual Transparent Plastic Wrapping |
| Fleetguard Base Part | Original Equipment Equivalent Part | Aftermarket Replacement Part |
|---|---|---|
| HF6836 | RE47214 | Baldwin BT8845-MPG |
| HF6836 | 84477389 | P167418 |
| HF6836 | 32/907101 | WIX 51459 |
| HF6836 | 190913A1 | Fleetguard HF6548 |
| HF6836 | 207-60-71171 | Fleetguard HF6405 |
| HF6836 | 11036609 | Fleetguard HF6320 |
| HF6836 | 70000-15246 | Fleetguard HF6263 |
| HF6836 | 4484496 | Fleetguard HF6192 |
| HF6836 | 965897 | SH66706 |
| HF6836 | 51302215 | HX18874 |
| HF6836 | 49077 | P163569 |
| HF6836 | 22177738 | BT8310 |
