Features

Specifications

Part Number: 349-4087

Cross Reference: 349-4069, 207-8235, 126-2016, 350-9964

Product Name: Hydraulic Gear Pump

Applicable Brand: CAT Excavator Hydraulic & Pilot System

Pump Type: External Gear Pump

Main Material: Cast Iron Housing, Hardened Steel Gears

Rated Pressure: 250 Bar

Max Pressure: 280 Bar

Rotation Direction: Clockwise

Seal Material: High Pressure Resistant Rubber

Net Weight: 7.8 Kg

Warranty: 12 Months

HS Code: 8413602290

Basic Infomation

Place of Origin: CHINA

Certification: CE ISO9001

Payment & Shipping Terms

Packaging Details: Neutral Export Carton

Delivery Time: 5-8 working days

Payment Terms: T/T

Supply Ability: 50000 Piece / Years

Gallery

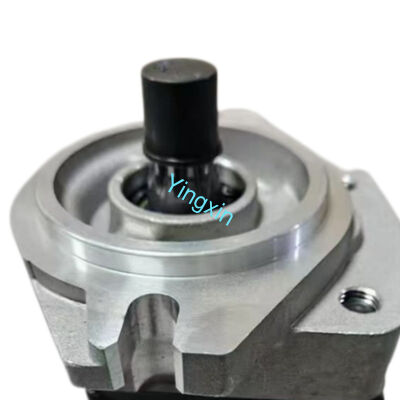

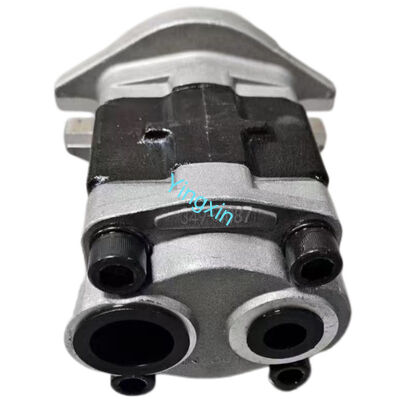

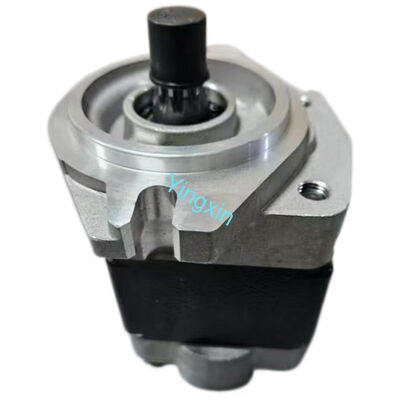

349-4087 Hydraulic Gear Pump CAT 349 Series Excavator Hydraulic System Pilot System

Product Description

Product Description;

349-4087 Hydraulic Gear Pump is a high-precision pilot pump designed for 349 Series excavators, serving as the core power source for the hydraulic pilot system. It delivers stable and low-pressure hydraulic flow to control main valve operations, ensuring smooth and responsive machine movements. Built with robust cast iron housing and hardened steel gears, it offers exceptional durability, high volumetric efficiency, and low noise performance. Fully tested to OEM standards, it provides a direct, hassle-free replacement with reliable performance in heavy-duty construction and mining environments.

Products Photos;

Specification	Details
Part Number	349-4087
Product Name	Hydraulic Gear Pump
Application	CAT 349 Series Excavator (Hydraulic & Pilot System)
Type	External Gear Pilot Pump
Material	Cast Iron Housing, Hardened Steel Gears
Rated Pressure	25 MPa / 250 Bar
Max Pressure	28 MPa / 280 Bar
Displacement	12 cc/rev
Speed Range	600–3000 RPM
Rotation	Clockwise (viewed from shaft end)
Port Size	Inlet: 3/4"；Outlet: 1/2"
Seal Material	High-Pressure Resistant Rubber
Condition	Brand New, 100% Factory Tested
Fitment	Direct Replacement, No Modification Needed
Weight	7.8 kg

Part Number	Product Name	Compatible CAT Equipment
349-4087	Hydraulic Gear Pump	349D, 349DL, 349E, 349EL, 349F, 349FL
349-4069	Hydraulic Gear Pump	349 Series, 345D, 345E, 345F
207-8235	Hydraulic Gear Pump	336D, 336E, 336F
126-2016	Hydraulic Gear Pump	320C, 320D, 322C, 324D
350-9964	Hydraulic Gear Pump	318C, 319C, 324 Series Excavators

Packing and shipping:

FAQ

ISSUES YOU MAY BE CONCERNED ABOUT
HERE IS THE ANSWER!

Q1:How long is the warranted time?

A:For natural broken, 3 months. Guarantee genuine parts.

Q2: What's payment you can accept?

A:T/T, WECHAT,PAYPAL.

Q3: What's package? Can you give me the package according my requirement?

A:Yes, Original packing or Neutral packing with wooden box or carton.

Q4: How about the lead time?

(1) ln stock: 1-7 days.Always in 72 hours.
(2) Out of stock: lt's according to your quantity, and we have cooperated with factory.

We will let you know when we quote.

Q5: What's the shipping way you can offer?

(1) Big order: By sea or by air.(It can reduce the costs).
(2) Small order: DHL,TNT,UPS,FEDEX,EMS,ARAMEX.
