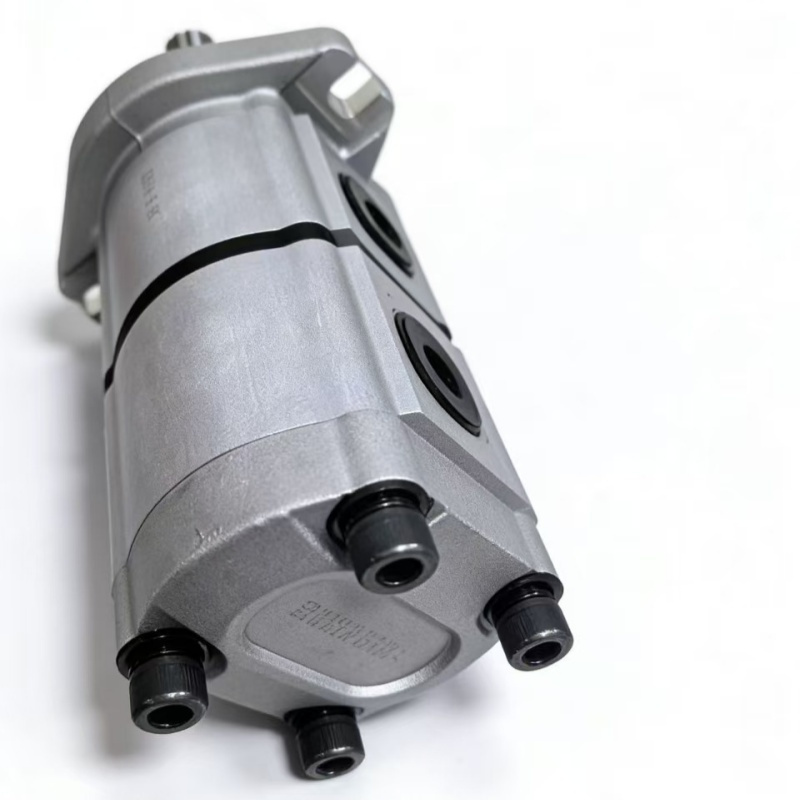

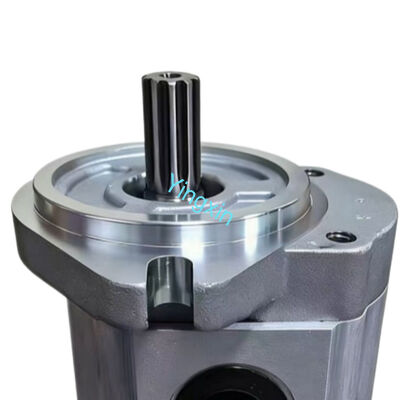

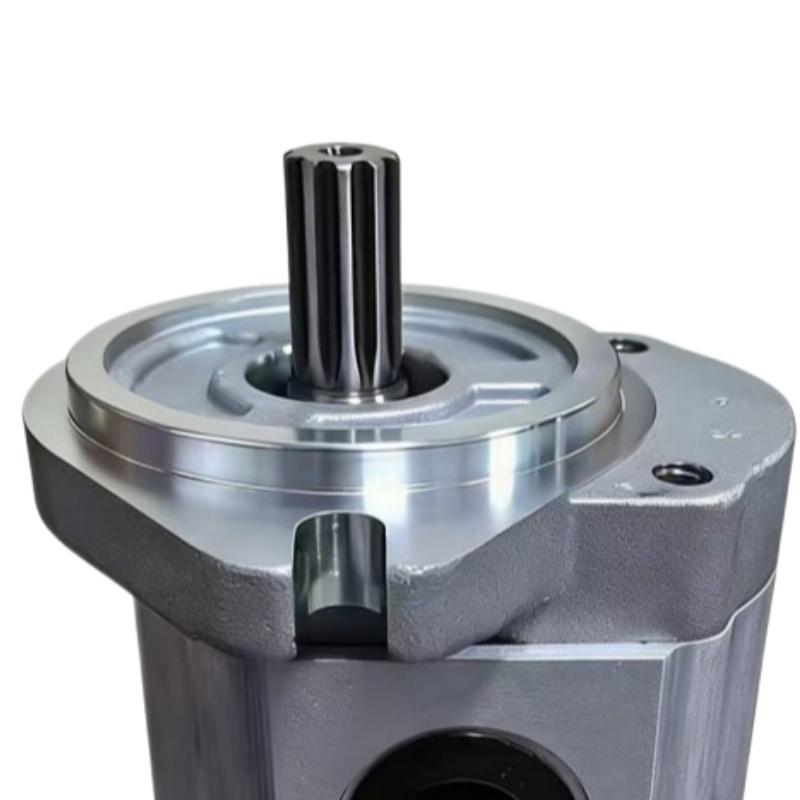

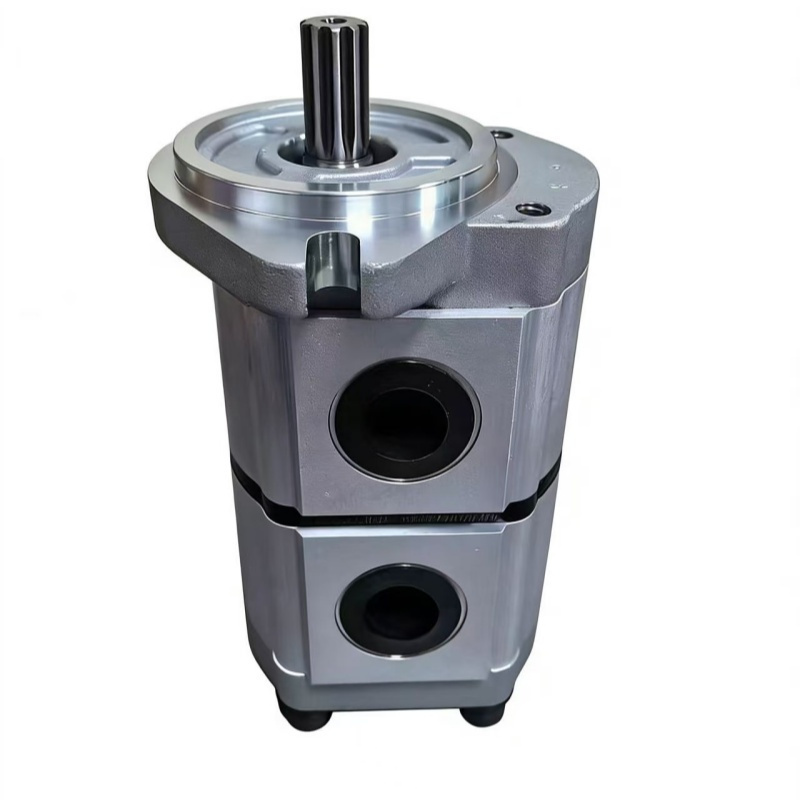

5K249005KUB Hydraulic Double Gear Pump.
| Parameter | Specification |
|---|---|
| Part Number | 5K249005KUB |
| Product Name | Hydraulic Double Gear Pump |
| Structure Type | Double Gear Pump |
| Application | Construction Machinery |
| Max Working Pressure | 20 MPa |
| Max Rotation Speed | 3000 rpm |
| Shaft Spline | 10 Teeth |
| Inlet Port Size | 1-1/4" BSP |
| Outlet Port Size | 3/4" BSP |
| Oil Viscosity Range | 15–100 cSt |
| Operating Temperature Range | -20°C ~ +80°C |
| Housing Material | High Strength Cast Iron |
| Body Material | High Precision Aluminum Alloy |
| Gear Material | Alloy Steel |
| Shaft Material | Heat-Treated Alloy Steel |
| Sealing Type | High Pressure Oil Seal |
| Surface Treatment | Anti-Corrosion Coating |
| Core Features | High Efficiency, Low Noise, Leak-Proof, Long Life |
| Net Weight | 6.2 kg |
| Gross Weight | 7.0 kg |
| Package Size | 23 × 17 × 15 cm |
| Part Number | Product Type | Compatible Machinery |
|---|---|---|
| 5K249005KUB | Hydraulic Double Gear Pump | Construction Machinery, Excavator, Loader |
| 5K249006KUB | Hydraulic Double Gear Pump | Construction Machinery, Excavator, Loader |
| 5K249007KUB | Hydraulic Double Gear Pump | Construction Machinery, Excavator, Loader |
| 5K249008KUB | Hydraulic Double Gear Pump | Construction Machinery, Excavator, Loader |
| 5K249009KUB | Hydraulic Double Gear Pump | Construction Machinery, Excavator, Loader |
| 5K249010KUB | Hydraulic Double Gear Pump | Construction Machinery, Excavator, Loader |
If you can find the number you need, please contact our sales manager to check and confirm it!
